YA系列圓振動篩

YA系列圓振動篩的產品概述

    YA系列圓振動篩是一種經典、通用且已標準化的篩分設備。該系列篩分機機箱運動軌跡為圓，根據用途有輕型和重型之分，篩機篩面有單層和雙層兩種結構形式，可應用于選礦、建材、電力、輕工和化工各行業對各種顆粒狀和小塊狀散固體物料的干式分級。YA圓振動篩適用于煤、石灰石、碎石、砂礫、金屬或非金屬礦石及其他物料的篩分。機體采用框架式結構，利用普通電機外拖動振動器使篩體沿激振力方向作周期性往復振動，物料在篩面上連續作圓運動，從而達到篩分目的.

Product overview
   YA series circular vibrating screen is a classic, general and has standardized screen equipment.This series of sieving machine chassis trajectory is round, according to the purpose of light and heavy, the machine screen surface with single and double two kinds of structure form, can be used in mineral processing, building materials, electric power, light industry and chemical industry for a variety of bulk solid materials in granular and small pieces of dry classification.YA circular vibrating screen is suitable for the coal, limestone, gravel, sand, metal or nonmetal ore and other material screening.Outside the body adopts frame type structure, the use of conventional motor drag vibrator makes the screen body along the direction of vibration force for periodic reciprocating vibration, material on the screen as circular motion in a row, so as to achieve screening purpose.

圓振動篩視頻展播

Animation Shown

YA系列圓振動篩的工作原理

    該系列圓振動篩主要由篩箱、篩網、振動器及減振彈簧等組成。振動器安裝在篩箱側板上，并由電動機通過三角皮帶帶動旋轉，產生離心慣性力，迫使篩箱振動。如用戶無特殊要求，YA和2YA型為紡織篩面，YAH型為沖孔篩面，各類篩面均能滿足篩分效率高、壽命長、不堵孔的要求。該系列篩機為座式安裝。篩面傾角的調整可通過改變彈簧支座位置高度來實現。電動機可安裝在篩框的左側，亦可安裝在篩框的右側，如無特殊要求，制造廠按物料運動方向的右側安裝供貨。YA系列圓振動篩引進國外技術制造，具有篩分效率高、結構科學合理、整機強度和剛度高以及運行平穩、堅固耐用、噪音低、維修方便等特點。

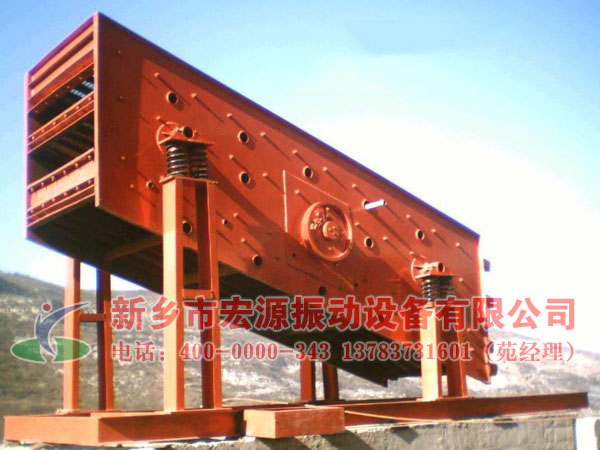

Working Site
  This series of circular vibrating screen is mainly composed of screen box, screen, vibration and damping spring, etc.Vibrator is installed on the screen box side plate, and by the motor through v-belt drive rotation, generate centrifugal force, forced vibration sieve box.No special requirements such as user, YA YA and 2 for textile screen surface, YAH model for punching screen surface, each kind of screen surface can meet the high screening efficiency, long service life, no blocking by the hole.This series of machine for a type of installation.Screen surface inclination adjustment can be implemented by changing the position of spring support height.Motor can be installed in the left of the screen, can be installed on the right side of the screen, if no special requirement, supply manufacturers according to the right side of the material movement direction installation.YA series circular vibrating screen technology introduced from abroad, has high screening efficiency, scientific and reasonable structure, high strength and stiffness of the whole machine and smooth operation, strong and durable, low noise, easy maintenance, etc.

    根據用戶不同需求，該系列篩機可選配金屬絲編織網、棒條、鑄造、焊接、沖孔等多種形式的篩面，以滿足不同行業需求。
   According to different user needs, the series of optional metal wire woven mesh sieve machine, bar, casting, welding, punching, and other forms of screen surface, in order to meet the needs of different industries.

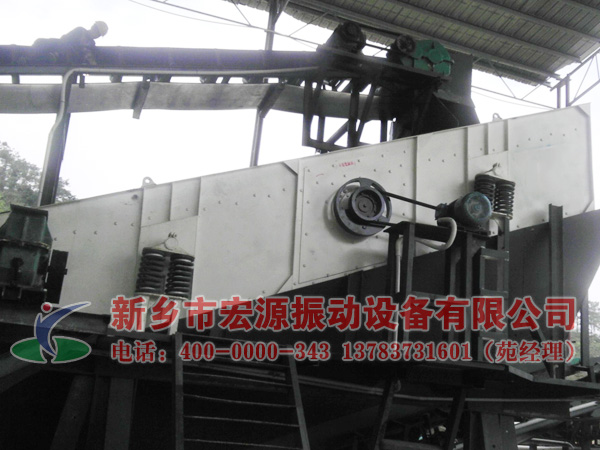

圓振動篩使用現場
Working site

YA系列圓振動篩主要特點　

1、環槽鉚釘聯接、結構先進，堅固耐用。
2、采用輪胎聯軸器，柔性連接，運轉平穩。
3、篩子橫梁與篩箱采用高強度螺栓，結構簡單，維修方便快捷。
4、結構先進、采用塊偏心作為激振力，激振力強、電耗低、噪音小。
5、采用小振幅，高頻率，大傾角結構，使該機篩分效率高、處理量大。
6、振動器采用大游隙軸承，稀油潤滑、噪聲低、壽命長。零部件通用性強，維修方便。
7、多種篩分輔助配置，更多地理解客戶個性化的篩分需求，滿足不同行業的需求，達到最佳篩分目的。

Features
1, ring groove rivet connection, advanced structure, strong and durable.
2, USES the tyre coupling, flexible connection, smooth operation.
3, sieve beam and screen box adopts high strength bolt, simple structure, convenient maintenance.
4, advanced structure, adopt eccentric block as the exciting force, excitation power, low power consumption, low noise.
5, using small amplitude, high frequency, large dip Angle structure, make the machine high screening efficiency, large quantity.

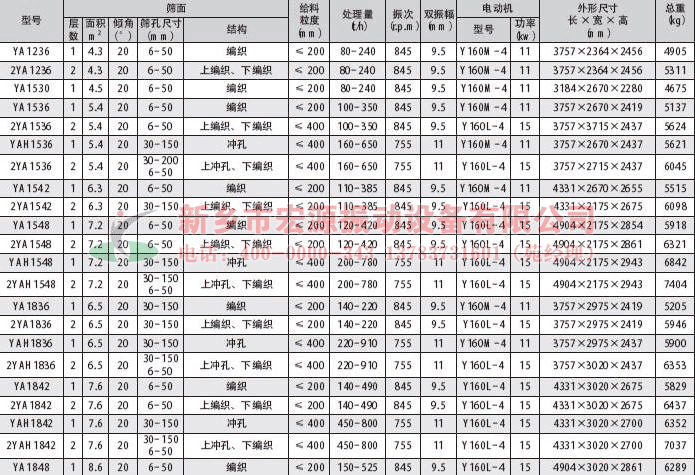

YA系列圓振動篩技術參數

Parameters
