概率篩
概率篩圖片
Photos
概率篩產品概述
概率篩是一種能動地利用概率篩分原理的篩分機。通常所說的概率篩是振動概率篩,其篩面是靠激振裝置進行直線振動的。這種概率篩目前已廣泛地應用于冶金、建材及煤炭等工業部門,用于對中、細粒物料的粒度分級。振動概率篩與變通振動篩在結構上的主要區別是,振動概率篩采用多層(一般為3~6層)、大傾角(一般為30°~60°)、大篩孔(篩孔尺寸是分離粒度的2~10倍)的篩面。Product overview
Probability screen is a kind of active use of probability sizing screen of the principle of extension.Commonly referred to as the probability of vibrating screen the screen surface is established by linear vibrating excitation device.This probability screen has been widely used in metallurgy, building materials and coal industries, used for medium and fine grained material particle size grading.Probability of vibration screen with flexible vibrating screen is the main difference in the structure, probability of vibrating screen using multi-layer (usually for 3 ~ 6 layer), large dip Angle (30 ° ~ 60 °), large mesh (screen mesh size is 2 ~ 10 times the separation size of screen surface.

Probability screen machine is a new type of high efficient screening equipment, its screen box running track is a straight line.This series of machine is probability theory the successful model of organic combination with the engineering practice, its new design concept and unique structure and screening principle accomplished probability screen nearly perfect screening effect, has a broad application prospect.

概率篩裝車現場
Probability screen, based on the principle of the ballast along the screen surface relative sliding and link transmission designed on the basis of the polygon effect of railway ballast cleaning sieve machine using a new type of sieve.Probability screen(linear probability)using bigger than screening particle size of mesh, grading, the supplies by the framework, a set of multi-layer overlap each other, increasing gradient from top to bottom, decreasing mesh size of screen surface and two vibration motor.The entire device installed in a group on the original elastic, through rotary vibration motor, screen surface to obtain the high frequency vibration.

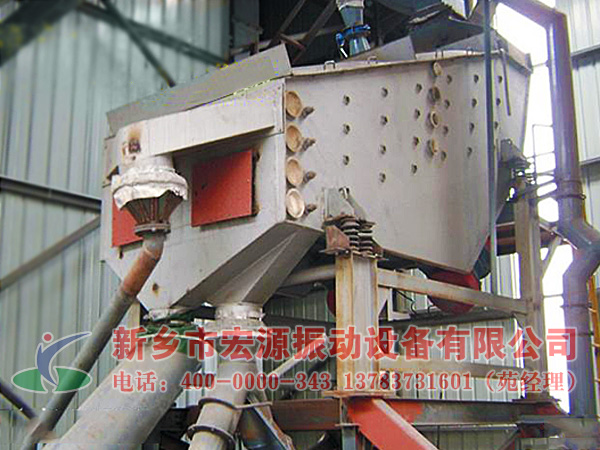

概率篩使用現場
Working site

概率篩使用現場
working site


概率篩工作原理動畫
Animation shown
概率篩技術參數
Parameters型號 | 篩面 | 物料粒度(mm) | 驅動電機 | 振次(1/min) | 雙振幅(mm) | 生產能力(t/h) | 篩分效率 | |||||
篩面層數 | 篩面結構 | 分級粒度(mm) | 篩面面積(m²) | 篩面傾度(°) | 型號與規格 | 功率(kw) | ||||||
GLS0615 | 2-8 |
編 織 網 |
~50 | 0.9n | 5--30 | ≤50 | YZ08-6 | 055×2 | 960 | 5--8 | 15-50 | ≥95% |
GLS0820 | 1.6n | YZ010-6 | 0.75 ×2 | 15-50 | ||||||||
CLS1018 | 1.8n | YZ016-6 | 1.1×2 | 30-120 | ||||||||
GLS1020 | 2.0n | YZ016-6 | 1.1×2 | 30-120 | ||||||||
GLS1224 | 2.9n | YZ020-6 | 1.5×2 | 30-120 | ||||||||
GLS1530 | 4.5n. | YZ040-6 | 3.0×2 | 30-160 | ||||||||
GLS1536 | 5.4n | YZ040-6 | 3.0×2 | 30-160 | ||||||||
GLS1830 | 5.4n | YZ040-6 | 3.0×2 | 30-180 | ||||||||
GLS1845 | 8.1n | YZ040-6 | 3.0×2 | 30-180 | ||||||||
GLS2030 | 6.0n | YZ050-6 | 3.7×2 | 50-200 | ||||||||
GLS2045 | 9.0n | YZ050-6 | 3.7×2 | 50-200 |
